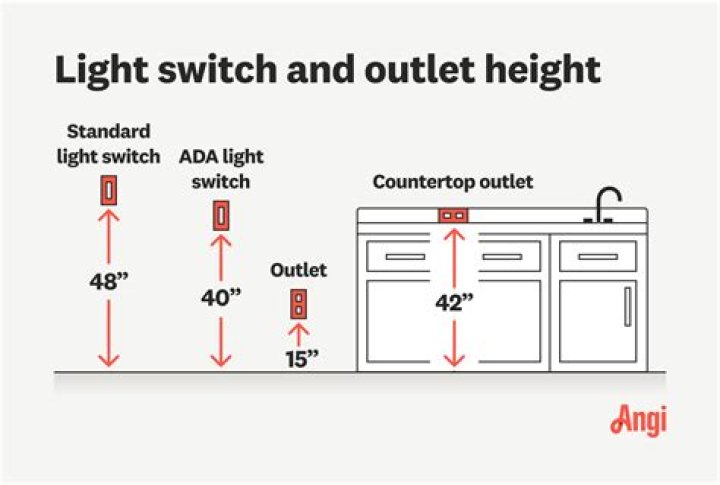

The ADA requires that light switches be placed anywhere from 15 to 48 inches. A light switch mounted at 48” is not accessible for individuals with quadriplegia who use powered wheelchairs, little people, or for people carrying heavy boxes.
What is ADA requirements for switches?
Light switches in kitchens, hotel rooms and bathroom must all be accessible to everyone, and the ADA requires switches to be located no higher than 48 inches above the ground with no obstructions and nothing in the way of the knees or toes.
What is ADA compliant for lighting?
ADA approved lights have a thin profile that allows them to fit in hallways, aisles, passageways, bathrooms, and other cramped spaces without intruding into areas where people walk or pass through with other means. Light fixtures must be 80 inches above the ground in order to be ADA compliant.
What is the code for light switch height?
Many builders position switch boxes so the bottom of the box is 48 inches above the floor. To satisfy the accessibility requirements of the Fair Housing Act, however, the switch itself should be no more than 48 inches from the floor.What is the code for light switches?
This states that all light switches must be placed between 15 and 48 inches from the floor to ensure that wheelchair users can reach them. With this in mind, builders tend to work to a standard height by placing the switch plate’s bottom 48 inches above the floor.
What is ADA height for electrical outlets?
The receptacle height range for an unobstructed front or side reach is 15 inches minimum from the floor to 48 inches maximum.
What height is ADA compliant?
ADA work surfaces or desks should be from 28″ to 34″ inches from the finish floor to the top of the surface area, with a typical average seating height of 30″ inches.
What height are light switches Ireland?
Wall-mounted switches and control devices shall be mounted at a height as follows: i) switches for permanently-connected appliances: Between 400mm and 1200mm above floor level; ii) switches for lighting equipment: – in dwellings, between 400mm and 1200mm above floor level, – in public and similar buildings, between …What height should light switches be UK?
Sockets need to be installed at least 450mm up from the floor level of a room. TV points, telephone points, doorbells and light switches should be a max height of 1200mm from the floor. Electrical sockets, switches and other electrical control devices should be a minimum of 350mm from corners of a room.
What is ADA wall?ADA Wall creates a continuous hand guided safe passage through work zones. The ADA Wall is made of UV stabilized, high density polyethylene. The linkable ADA Walls quickly and easily link together in 6 foot sections to allow the contractor flexibility in creating a safe pedestrian pathway.
Article first time published onWhat is the standard height of a switch box?
Wall Switches in Standard Construction Typically, light fixture wall switches in standard residential construction are set so that wall switch boxes are somewhere between 48 and 52 inches above the floor.
What is ADA height for card reader?
The model codes and accessibility standards require operable hardware to be mounted between 34 inches and 48 inches above the floor.
What is the height of a handicap commode?
A comfort height toilet is sometimes known as an Americans with Disabilities Act (ADA) toilet because the height matches that used for ADA-compliant toilets, 17 to 19 inches from floor to seat. This is like the height of a chair. The height of a standard toilet is about 15 inches from floor to seat.
Where should light switches go?
Typically, these switches should be placed around four inches above the countertop. Usually, counters reach about 30 inches above the ground, meaning the switch should be placed around 40 inches above the floor. However, the specific height will vary from home to home.
What height should a consumer unit be installed?
consumer units are mounted so that the switches are 1350 – 1450mm above floor level. At this height, the consumer unit is out of reach of young children yet accessible to other people when standing or sitting.
How close to the floor can an outlet be?
Electrical receptacle outlets on branch circuits of 30 amperes or less and communication system receptacles shall be located no more than 48 inches (1219 mm) measured from the top of the receptacle outlet box nor less than 15 inches (381 mm) measured from the bottom of the receptacle outlet box to the level of the …
What is an ADA wall sconce?
The American with Disabilities Act (ADA) limits wall-mounted luminaires to four inches in depth when located between 27 inches and 84 inches from the finished floor level of walks, halls, corridors, passageways, or aisles. Many sconces meet this requirement at any mounting height.
What is the standard height of switch board from floor for residential electrical installation?
A switch shall be installed at any height of 1.3 m above the floor level. Socket-outlets shall be installed either 0.25 or 1.3 m above the floor as desired. The light brackets should be fixed at a height of 2 to 2.5 meters from ground level. The maximum number of points in a sub-circuit is 10.
Do electrical panels need to be ADA?
“So it needs to be ADA-compliant in terms of height, reach and protrusion.” ADA regulatory terms clearly define the heights and distances from walls for operable parts. Using the floor as the reference point, a wall-mounted switch or control panel should be no higher than 48 inches and no lower than 15 inches.
How far can a card reader be from the door?
The reader cable needs to be dispatched to the reader height next to the door 48” from the floor, with minimum distance of 10” from the door frame.
What is ADA height for intercom?
An intercom should therefore not be placed higher than 48 inches above the floor, if it requires access from the front. If the intercom can be accessed from the side, then this restriction goes up to 50 inches above the floor.
Are chair height toilets better?
It is more comfortable for taller people and for people who have a hard time getting up from a low seat, like the elderly or disabled. It will measure 17 to 19 inches from the floor to the seat. Often this height toilet is priced less than the standard height toilet.
What is the difference between a regular toilet and a handicap toilet?
The only difference between an Comfort Height toilet (or what is sometimes referred to as a handicapped toilet) and a regular toilet is that it that an Comfort Height toilet has a higher seat. … An Comfort Height Toilet may also have assisted flushing that makes pushing down on the handle easier.
Should light switches be inside or outside room?
Usually, a residential light switch is placed on the immediate right of the inside of the room you are entering. The logic behind putting a switch outside the room could be an immediate hazard as you enter a dark room – like stairs, etc. It has much to do with both comfort and ease of the provisioning.
