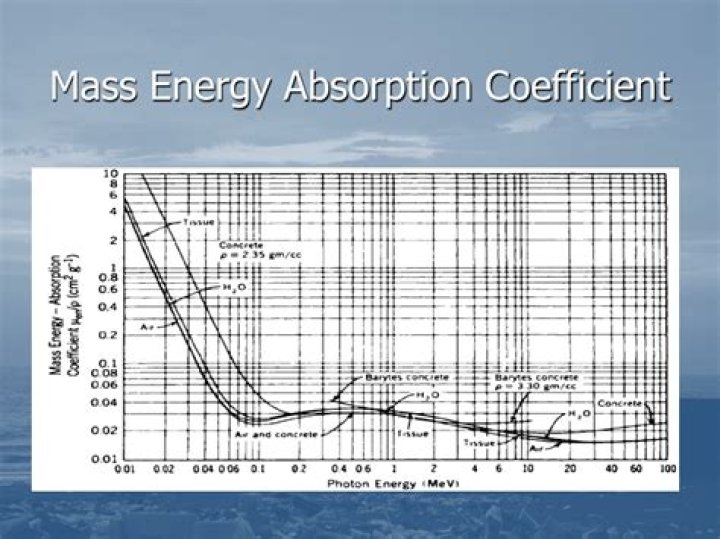

The Mass Energy-Absorption Coefficient, μen/ρ … 13) represents the average fraction of the kinetic energy of secondary charged particles (produced in all the types of interactions) that is subsequently lost in radiative (photon-emitting) energy-loss processes as the particles slow to rest in the medium.
What do you mean by mass absorption coefficient?
Definition of mass absorption coefficient : the absorption coefficient divided by the density or for a solute in solution by the density concentration.
What does mass absorption coefficient depend on?
4- The linear absorption coefficient depends on the density of the absorbed material.
What is mass energy transfer coefficient?
Mass energy transfer coefficient The mass energy transfer coefficient is the product of the mass attenuation coefficient and the fraction of energy transferred to the charged particles as kinetic energy, by the interacting incident photons.How do you calculate mass absorption coefficient?
The Mass Attenuation Coefficient, μ/ρ from which μ/ρ can be obtained from measured values of Io, I and x. Note that the mass thickness is defined as the mass per unit area, and is obtained by multiplying the thickness t by the density ρ, i.e., x = ρt.
What is the mass absorption coefficient of hydrogen and oxygen?
Mass absorption coefficients of hydrogen, carbon and oxygen for x-rays of wave-lengths from 0.25 A. to 0.98 A., computed from the above measurements, are as follows: μH=0.37+0.28λ3, μC=0.18+1.01λ3, μO=0.16+2.785λ3.
Why is mass attenuation coefficient useful?
Accurate values of the photon mass attenuation coefficients are required to provide essential data in diverse fields such as nuclear diagnostics (computerized tomography), radiation protection, nuclear medicine, radiation dosimetry, gamma ray fluorescence studies, and radiation biophysics.
What is mass stopping power?
Mass stopping power means the energy lost by the radiation in traversing a unit distince per unit density.What is the difference between mass attenuation coefficient and linear attenuation coefficient?
, where ρ is the material density, (μ/ρ) is the mass attenuation coefficient and ρ. l is the mass thickness. For intermediate energies the Compton scattering dominates and different absorbers have approximately equal mass attenuation coefficients. …
What determines absorption coefficient?The absorption coefficient determines how far into a material light of a particular wavelength can penetrate before it is absorbed. … The absorption coefficient depends on the material and also on the wavelength of light which is being absorbed.
Article first time published onHow do you use absorption coefficient?
You can calculate the absorption coefficient using this formula: α=2.303*A/d, where d is thickness, A is absorption and α is the absorption coefficient, respectively.
Does absorption coefficient depend on thickness?
absorption coefficient (α) = 2.303 A / t In thin films interference occurs – you must not use the Beer-Lambert law in this case, since absorbance changes non-linearly with thickness… it even can become smaller with increasing thickness.
What is the linear absorption coefficient of Aluminium?
The linear attenuation coefficient of absorber materials such as graphite was (0.097 cm −1), whereas it was observed (0.136 cm −1) for aluminium, and lead was (0.596 cm −1). By using the gamma radiation energies emitted from 60Co source with 1332 keV, experimental and theoretical values are in a good agreement.
How does attenuation coefficient vary with energy?
The attenuation coefficient is dependent upon the type of material and the energy of the radiation. Generally, for electromagnetic radiation, the higher the energy of the incident photons and the less dense the material in question, the lower the corresponding attenuation coefficient will be.
Can linear attenuation coefficient negative?
In the inline phase contrast x-ray tomography the reconstructed apparent linear attenuation coefficient values may be greatly larger than sample’s linear attenuation coefficients or even be negative.
Is linear absorption coefficient?
linear absorption coefficient the fraction of a beam of radiation absorbed per unit thickness of absorber. mass absorption coefficient the linear absorption coefficient divided by the density of the absorber.
How do you calculate mass stopping power?
The mass stopping power of a material is obtained by dividing the stopping power by the density ρ. Common units for mass stopping power, -dE/ρdx, are MeV cm2 g-1.
What is proton stopping power?
The stopping power is the energy loss per unit of length or -‐dE/dx of the proton energy.
How does Bragg curve occur?
The Bragg curve is typical for heavy charged particles and describes energy loss of ionizing radiation during travel through matter. … This peak occurs because the cross section of interaction increases immediately before the particle come to rest.
Is absorption coefficient and extinction coefficient same?
The extinction coefficient is a measure of the damping of the electromagnetic wave as it passes into a medium. … The absorption coefficient, a, allows us to measure how much light is absorbed and is related to k by a=(4*pi*k)/lambda. It essentially the reciprocal of how far the light travels into the solid.
What is absorption coefficient of liquid?
The optical absorption coefficient of liquid is a remarkable parameter in chemical, biological, atmospheric science and remote sensing fields. … When an OM is immersed into the absorptive liquids, the evanescent field interacts with the measured medium effectively, leading to an additional loss of the transmitted power.
Does absorption coefficient have units?
The absorption coefficient is essentially the cross-sectional area per unit volume of medium. Experimentally, the units [cm-1] for µa are inverse length, such that the product µaL is dimensionless, where L [cm] is a photon’s pathlength of travel through the medium.
What is the absorption coefficient of an open window?
Open windows and doors are considered to be completely absorptive, with 100% absorption. Thus the absorption coefficient of an open window is unity(1).
Which of the following has maximum absorption coefficient?
> Lastly the open window which can allow the heat or light energy to enter and results into complete absorption. Thus it is a good absorber and has the largest absorption coefficient.
What is the linear attenuation coefficient of water?
theoretical value of the mass attenuation coefficient of water at 59.54 keV is about 47.0% for the transmission method.
What is meant by attenuation coefficient of a fiber?
The attenuation of an optical fiber measures the amount of light lost between input and output. Total attenuation is the sum of all losses. Optical losses of a fiber are usually expressed in decibels per kilometer (dB/km). The expression is called the fiber’s attenuation coefficient α and the expression is.
