High-performance polyethylene is an improved polyethylene compound for pressure pipe that is designated PE4710. Compared to conventional pressure piping materials such as PE3408, several important performance characteristics are significantly enhanced.
What does PE4710 mean?

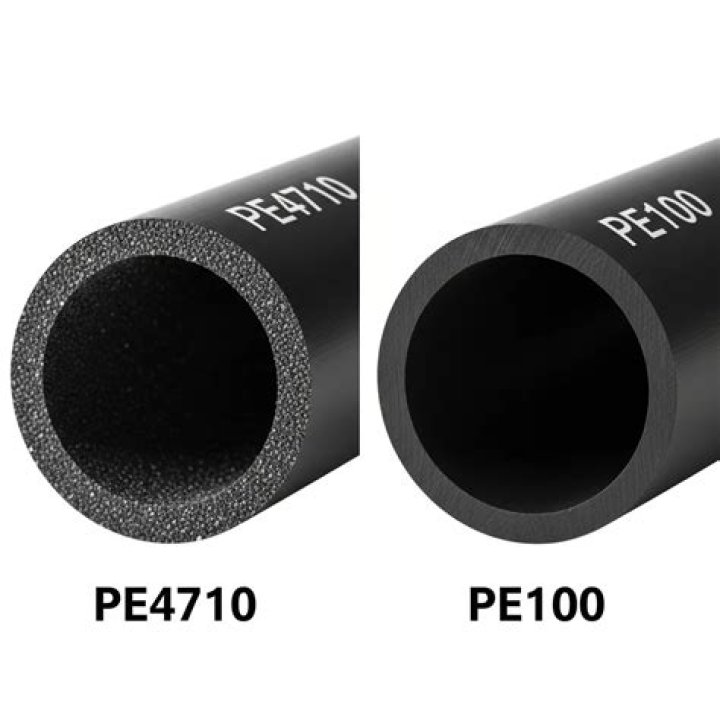

PE4710, for example, means that the product is made of polyethylene with a “4” rated density, “7” rated slow crack growth class, and has a 1,000-psi maximum recommended HDS with a 0.63 design factor at 23 degrees Celsius in accordance with ASTM D3350 and the stress rating policies in the Plastics Pipe Institute’s PPI- …
What is SDR 11 HDPE pipe?
A SDR 11 means that the outside diameter – D – of the pipe is eleven times the thickness – s – of the wall. We here at Rahn Plastics find that the most requested SDR size is SDR11. Also common are DR’s 9 and 17.
Is PE4710 a HDPE?
PE 4710 pipe is produced from the highest rated HDPE pipe materials. This is a long lasting, fusible pipe. PE4710 pipe is a pressure rated product and listed under the Plastics Pipe Institutes (PPI) Technical Report Four (TR-4 @ > PPI Publications > Technical Reports).What is PE3408?
PE3408. PE3408 has a resin designation of 3, a crack resistance factor of 4, and a HDS of 800 psi at 73F. Because this classification has been in existence for quite some time, it is sometimes included in specifications even when another pipe is actually being used, such as PE3408/3608 or PE3408/4710.
What is ASTM D2513?
ASTM D2513 – 12ae1 Standard Specification for Polyethylene (PE) Gas Pressure Pipe, Tubing, and Fittings.
What is AWWA C901?
ANSI/AWWA C901 UPDATE HEIGHTENS STANDARDS FOR HDPE WATER SERVICE PIPES. … It also raises the cell classification for oxidative resistance to CC3 (for potable water piping systems), the highest and only acceptable level of chlorine and chloramine resistance in potable water systems.
What is IPS and dips in HDPE pipe?
IPS pipe has an inside diameter of six inches. Ductile Iron Pipe Size or DIPS is used to specify the size of ductile iron pipe. Typically, IPS refers to black iron or carbon steel pipe while DIPS refers to cast/ductile iron pipe.What is the difference between SDR and DR pipe?
The key difference between them is that DR is used for any number, while SDR is used for a particular series of numbers ( 17, 11, 9, 7, etc.) … This means that two pipes with the same OD but different DR numbers would have different wall thicknesses.
What does HDPE stand for plastic?High-density polyethylene or HDPE is a commonly used petroleum thermoplastic and the most used of the three polyethylenes for a wide range of applications. If you look at this plastic under a microscope, you would see that it has a linear structure with few branches lending to its optimal strength/density ratio.
Article first time published onWhat is the thickness of SDR 11 HDPE pipe?
NOMINAL SIZE IN (MM)OUTSIDE DIAMETER (O.D.) IN (MM)1 1/2 (41)1.894 – 1.906 (48.15 – 48.45)2 (53)2.369 – 2.381 (60.15 – 60.45)3 (78)3.492 – 3.508 (88.70 – 89.10)4 (103)4.491 – 4.509 (114.07 – 114.53)
Where is SDR pipe used?
Used mainly in stormwater and drainage applications, SDR 35 is a medium-strength pipe that falls between Schedule 20 and Schedule 40 PVC pipe.
What material is SDR?
SDR in Polyethylene pipes. SDR stands for Standard Dimension Ratio. SDR is the ratio of the outer diameter to the thickness of the PE pipe, which is one of the characteristics of the Polyethylene pipe, and the pipes can be sorted according to the standard tables accordingly.
What is PE2406?
PE2406 GAS PRESSURE PIPE (IPS) Gas Pipes. Duct & Innerduct.
What is ASTM F714?
ASTM F714: Standard Specification for Polyethylene (PE) Plastic Pipe (SDR-PR) Based on Outside Diameter.
How much pressure can poly pipes hold?
Comparable 1″ Poly pipe is rated to withstand 100 PSI.
What is c901 pipe?
Application: JM Eagle’s high-performance high-density polyethylene water pressure pipes are suitable for municipal and industrial transmission systems for potable water, sewer, drain, mining, irrigation, and reclaimed water.
What is the difference between SDR and Sidr?
SDR stands for “Standard Diameter Ratio” which is the outside diameter divided by the wall thickness. … SIDR stands for Standard Inside Diameter Ratio” which is the inside diameter divided by the wall thickness. The higher the number, the thinner the wall thickness.
What is ASTM d3350?
This specification covers the identification of polyethylene plastic pipe and fitting materials. … Color and ultraviolet stabilizer, thermal stability, brittleness temperature, density, tensile strength at yield, and elongation at break shall conform to this specification.
What is Anodeless riser?
Anodeless risers are constructed of an epoxy coated exterior steel casing that protects the polyethylene pipe running through it. The poly pipe extends past the casing (below ground) so it can be joined to the poly piping system.
What is PE2708?
PolyTough1 (PE2708) is a unique high performance medium density gas distribution pipe manufactured from Dow® ContinuumTM DGDA 2420 bimodal resin. PolyTough1 provides outstanding resistance to slow crack growth (SCG) and rapid crack propagation (RCP) which provides for a safer gas distribution system.
What is ASTM d3035?
This specification covers polyethylene (PE) pipes made in thermoplastic pipe dimension ratios based on outside diameter, and pressure rated for water. … Included are criteria for classifying PE plastic pipe materials and PE plastic pipe, and a system of nomenclature for PE plastic pipe.
Can you drive over SDR 35 pipe?
The fittings are interchangeable with each other which adds to the versatility of this and SDR 35 pipe. It is recommended to use where any type of vehicular traffic would not cross the area. At that point a transition can be made to SDR 35 to withstand areas where that traffic may cross.
What is DR 14 pipe?
Class 305 (DR14) Dimension Ratio (DR) is the outside diameter of the pipe divided by the minimum wall thickness.
What is the difference between Schedule 40 and SDR 35?
SDR will bend with the shifting and settling. Having a higher flex tolerance means less breaks from the soil conditions. Schedule 40 is so rigid that in the event the ground shifts or settles this pipe has no give. It will simply snap or break from the pressure.
Is PVC pipe IPS or dips?
IPS (Iron Pipe Size) PVC plastic pipe is most commonly produced in either different “Schedules” (i.e. IPS Schedule 40, 80, 120, etc.) that have different pressure ratings for each size or in different SDR for “Standard Dimension Ratio” that has the same pressure rating for all sizes within a given SDR value.
What is the wall thickness of HDPE pipe?
Pipe Size (NPS)Outside Diameter (IPS)Minimum Wall (in)1 1/41.6600.1511 1/21.9000.17322.3750.21633.5000.318
What is the OD of HDPE pipe?
Nominal Pipe Size (in)Outside Diameter (in)Min. Wall Thickness (in)DR 32.511.3150.0621 1/41.6600.0621 1/21.9000.062
