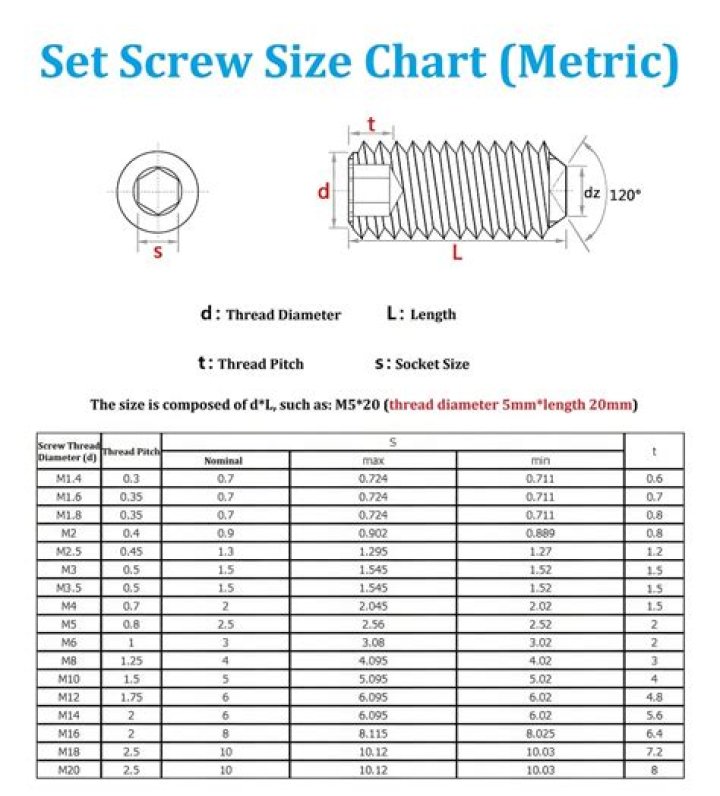

What size is a set screw

Socket Set Screw Dimensions (Alloy Steel) ASME B18.3-20035/160.1560.1723/80.1880.2127/160.2190.2521/20.2500.291

How do you measure a set screw?

As mentioned, a set screw is fully threaded along the length of the body, therefore the length is stated by the measurement from under the head to the end. The length of a bolt is also stated by the measurement from under the head to the end, but the length of the thread is determined by the diameter, as shown above.

How do I know what size my screw is?

To measure the diameter of screws and bolts, you measure the distance from the outer thread on one side to the outer thread on the other side. This is called the major diameter and will usually be the proper size of the bolt.

What is the difference between a set screw and a grub screw?

Set Screws are blind (headless) fasteners with an internal hex drive. … Grub Screws are used in a tapped hole and tightened to hold an exterior object in place within or against another object, via friction between the point or end of the screw and the material that is being fastened.

How do I know what size screw I need?

The general rule of thumb is that the screw should enter at least half the thickness of the bottom material, e.g. 3/4″ into a 2 x 4. The other factor is the screw’s diameter, or gauge. Screws come in gauges 2 through 16. Most of the time you’ll want to go with a #8 screw.

Is an 8 or 10 screw bigger?

Machine screws are often found in sizes of: 0, 1, 2, 3, 4, 5, 6, 8, 10, 12, 14—the larger the number, the larger the screw.

What is the purpose of a set screw?

Set screws are sometimes called setscrews, socket set screws, or grub screws. They are a type of threaded fastener, most often used for securing components in place. This generally means affixing two or more loose parts to one another, for example by holding one component tightly against (or inside) a second surface.

How do you match a screw?

1. Lay the screw down on a flat surface. …
2. Place a steel rule down the axis of the screw. …
3. Count the number of thread gaps within 1 inch of the screw.
4. Divide the count of thread gaps into the length. …
5. Place the screw on a flat surface.

What size is a 12g screw?

Self Tapping Screw Gauge (g)Size (mm)104.8125.5146.3188.0

What is the difference between #8 and #10 screws?

Larger gauge numbers indicate screws with thicker shafts. While utility screws are typically #8 or #10 gauge, steel wood screws are available in a much wider selection of gauge diameters.

Article first time published on

What does screw size M8 mean?

The defined diameter of metric bolts is actually slightly larger than the actual diameter of the bolt shaft. So an M8 bolt would have a shaft diameter that’s slightly under 8mm which means that the bolt should fit through an 8mm hole.

What does GRK screws stand for?

oK – stupid question – whats GRK stand for? Green River Killer. BUIC Sep 01, 2007 02:55pm #16. GRK is a brand of high quality screws.

How do I choose Set screws?

When selecting the set screw size, you should select a size where the indentation on the end of the screw is apparent on the cylindrical surface of the shaft. The following figure shows the correlation between the tightened shaft diameter and the set screw (half point).

What is a number 8 screw?

SizeMajor Thread Diameter*DecimalNearest Fractional Measurement#8.164″5/32″#9.177″11/64″#10.190″3/16″

What is a size 10 screw?

SizeNominal Thread DiameterDecimalNearest Fractional#80.164″5/32″#100.190″3/16″#120.216″7/32″

What is a number 8 screw in MM?

THREAD DIAMETERSizeNearest FractionMillimeter#85/324.2#103/164.8#127/325.5

What does 8g mean on screws?

The #8 gauge screw has a major diameter of 0.17″ and 8 TPI. The screw is 1-1/4″ long, a measurement taken from the bottom of the head to the point.

What number screw is 7mm?

TapMetric DrillUS Drill6mm x 1.05.2mm–7mm x 1.06.1mm15/64″8mm x 1.256.9mm17/64″8mm x 1.07.1mm–

How many MM is a 4g screw?

Metric Screw Sizes Explained As a handy coincidence, the Gauge (imperial) roughly equals the screw head size in millimetres. A 4 gauge screw will have a head that is approximately 4mm wide.

What are M4 screws?

They’re made from a durable carbon steel and come with a nut for tightening metal surfaces together. The M4 machine screw has a thread diameter of 4 millimetres, in simple terms the M stands for millimetres followed by the size – in this case 4 mm.

What size drill bit do I use for a number 8 screw?

Screw SizePilot hole size for hardwoods*Pilot hole size for softwood**#63/32″5/64″#73/32″5/64″#81/8″3/32″#91/8″3/32″

What do numbers mean on screws?

Screw sizes are designated by a number that indicates the diameter and the length of the screw in inches (Table 10-2). The smallest diameter screw is 0, and the largest commonly available is 24. For bench work, the most useful sizes are 4 through 12. Of those sizes, 6, 8, and 10 are probably used more than any others.

Is M8 screw 8mm?

There is an M sized bolt or screw that is 8mm in diameter. It is roughly the same as a 5/16 bolt or screw.

Are M8 and 5/16 the same?

Well, quick answer is no. They are not the same and they are not interchangeable, although they can work under certain circumstances. The most important part is understanding the meaning of M8 and 5/16 to refer to the size of a metric screw or bolt, so then we can see why they aren’t the same thing!

What's bigger M6 or M8?

MetricClosest InchM6-1.01/4-28 (Larger)M7-1.01/4-28 (Smaller)M8-1.255/16-18 (Smaller)M10-1.53/8-16 (Smaller)

Can GRK screws be used in pressure treated wood?

GRK fasteners are ICC code approved for exterior use in ACQ pressure treated lumber and have the strength to meet all your general construction needs. A building inspector will be able to use an ESR report to code approve your construction projects.

Can GRK cabinet screws be used outside?

GRK’s Cabinet™ screws are designed specifically for use in cabinet construction and installation. … Builders have discovered that short Cabinet™ screws can sometimes be used in vinyl siding installation, which makes this fastener ideal for both interior and exterior applications.

Will GRK r4 screws rust?

GRK’s Climatek™ coating meets or exceeds standards, including AC257, approved for use in various types of preservative treated wood. Designed for interior/exterior use, the golden finish nicely matches most wood finishes. GRK’s Stainless Steel Screws are made from 305 grade wire which will not rust.

What size is a Kwikset set screw?

This fit my Kwikset lever lock handle. The set screws appear to be size #5-40 x 3/16 inch long, right hand thread. It comes with a 1/16 inch allen wrench to tighten it.

What size set screw uses a 3/32 Allen wrench?

Screw DiameterDrive SizeSocket FlatSocket Cap#21.27mm (0.050″)5/64″#31/16″5/64″#41/16″3/32″

How long should set screws be?

In general, the minimum recommended length of engagement is 1 to 1.5 times the major diameter of the setscrew for threading in brass, cast iron, and aluminum; and 0.75 to 1 times the diameter for use in steel and other materials of comparable hardness.
