Near furnace and utility rooms.Places where a wood stove is used.Garages and especially the garage walls that separate that area from the main house.Garage ceilings that have living areas above.
When should you use a fire-rated wall?
Openings within the protected exterior wall area must have a minimum fire protection rating of 45 minutes. If the projecting element is combustible and does include concealed spaces, then the fire wall is only required to extend through the projecting element to the outer edge.
Is all drywall fire retardant?
Although all drywall is fire resistant to a degree, type-X and type-C drywall are designed specifically to be used in fire-rated assemblies. These products help to contain fire in the area of its origin much better than regular drywall.
What is the purpose of fire resistant rated walls?
Fire Wall – A fire-resistance-rated wall having protected openings, which restricts the spread of fire and extends continuously from the foundation to or through the roof, with sufficient structural stability under fire conditions to allow collapse of construction on either side without collapse of the wall.Is a firewall required between garage and house?
In short, the garage needs to be separated from the house in case of fire, but this isn’t a fire-rated assembly, nor is it a firewall. The best term for this required separation is a fire-separation wall.
Can you screw into a fire rated wall?
To provide the needed fire separation, the wall must be able to withstand this impact. For a one-hour fire-resistance rating, a wall must be subjected to a stream of water at 30 psi pressure for one minute. … Screws used in wood or steel framed walls must meet the requirements of either ASTM C1002 or ASTM C954.
Where are fire rated walls required?
Structural elements that brace the exterior wall but are located outside of the exterior wall or within the plane of the exterior wall shall have the minimum fire-resistance rating required in Tables 601 and 602 for the exterior wall.
What is the common wall thickness for fire resistant?
Normally, 20 cm thickness of the common wall (i.e. wall separating two building) is sufficient from fire-resistant point of view but it should be raised above the roof level by at least 90 cm.How do you fire proof a wall?
One of the most effective ways to add fire resistance to the exterior surface of a wall is to replace relatively flammable exterior wall treatments, such as vinyl or wood siding, with fire-resistant materials, such as brick, concrete or stucco.
Can you use drywall around a fireplace?Drywall + Fireplace = House Fire Unfortunately, this is highly flammable and is not an appropriate or safe fireplace surround. The sheetrock had to be removed and replaced with any type of non-combustible surround – stone, tile, marble, or metal.
Article first time published onDoes drywall catch on fire?
Drywall is relatively fire resistant. It’s composed of gypsum pressed between two sheets of thick paper. Gypsum is a soft mineral that by itself is not flammable. … Once the water dissipates, the gypsum begins to heat past the boiling point of water, and may begin to burn.
Does gypsum board catch fire?
#1: Offers fire protection It has a noncombustible core that contains chemically combined water (in calcium sulfate). … Even after the water is gone, the gypsum board continues to resist heat. You can use multiple layers of this material for higher heat resistance for your home.
Does garage drywall need to be fire rated?
A: First, fire-rated systems are only required if the garage shares a wall or a ceiling with the home. If you are doing repairs in the garage you should replace with like materials, but remember it is the wall system that is fire rated not the product itself.
How do you fireproof a garage wall?
You can reinforce your garage walls and ceiling by adding gypsum board to any part of the garage or ceiling that connects to the main home, which will minimize the possibility of a fire in the garage reaching the house. You should also make sure that you have a fire extinguisher and heat alarm in your garage.
Do I need to drywall my garage?
Protects From Fire Drywall is a great building matter that is highly resistant to fire so it is a great addition to garages. Garages often have power tools in them, flammable materials, and also people who work on cars with products that could catch fire. Installing drywall would be a good idea to keep it a safe area.
What is the difference between a fire wall and a fire barrier?
Basically, firewalls are thick exterior walls with a higher fire-resistance rating, while fire barriers are interior walls with a lower fire-resistance rating.

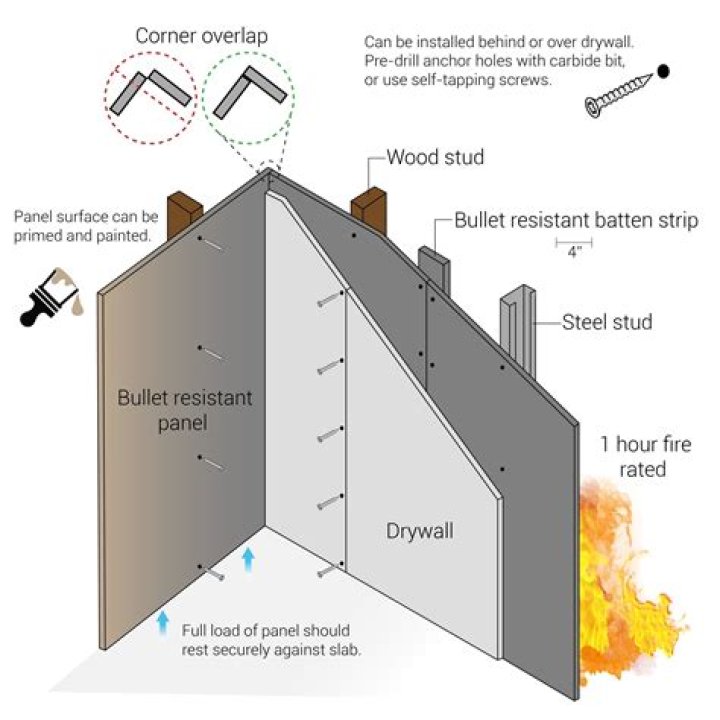

What is required for a 1 hour fire rated wall?
According to the book “Commercial Drafting and Detailing,” a typical one-hour fire rated wall consists of 2×4 studs spaced 16 inches from the center of one stud to the center of the next, covered by 5/8-inch, type X gypsum board. Type X gypsum board is wallboard to which non-combustible fibers have been added.
What is the fire rating of 1/2 drywall?
The fire rating for the 1/2-inch drywall used throughout the rest of the home is 30 minutes. As added benefits, Type X absorbs sound slightly better and is slightly stronger than conventional 3/8-inch or 1/2-inch drywall.
What are the 3 main classifications of fire-rated walls?
Type 1: Fire resistant: tall buildings protected by concrete and steel. Type 2: Non-flammable: New buildings with pitched roofs or reinforced masonry walls and metal roofs. Type 3: Ordinary: new or old buildings, with non-combustible walls, but a roof with a wooden structure.
What is the fire rating of 12.5 mm plasterboard?
If the ceiling is plasterboarded, then 12.5mm thick boards are required to give 30 minutes’ fire resistance. You may have to provide an additional skim coat or additional plasterboard to the ceiling.
Does thick wall give resistance against fire?
The fire resistance rating determines required length of time period that a structural member or system is able to function properly under fire. … However, quantitative evidence supporting the relationships between the thickness of a concrete wall and the resistance to fire has not been reported.
What insulation is fireproof?
Fiberglass: Made of glass that is spun into fibers, then combined with plastic polymers, fiberglass insulation is naturally fire resistant.
How do you build a fire proof house?
- Rely on ICFs for Your Foundation. …
- Armor Your Roof. …
- Choose Sturdy Siding. …
- Protect Your Windows. …
- Use Metal or Fiber-Cement for Doors. …
- Consider Your Layout. …
- Don’t Forget About Backyards and Landscaping. …
- Water and Power Generation.
Is code for fire fighting?
636: 1988Non-percolating flexible fire fighting delivery hose (third revision)2871: 1983Branch pipe, universal for fire fighting purposes (first revision)3589: 1981Electrically welded steel pipes for water, gas and sewage 150 to 2000 mm nominal size) (first revision)
What buildings are fire resistant and what makes them fire resistant?
Concrete, one of the most common building materials, is also an excellent fire-resistant material. It is noncombustible and has low thermal conductivity, meaning that it takes a long time for fire to affect its structural, load-bearing ability, and it protects from the spread of fire.
Is a single brick wall fire Rated?
The material thickness for a solid or cored unit is the actual thickness of the units in the wall. For example, a 110mm solid or cored brick will give a 90 minutes fire resistance period for insulation, using the table above. … Whereas, a single leaf of 90mm solid or cored bricks has a FRP of 60 minutes.
What materials can go around a fireplace?
- STEEL. Steel is one of the most popular fireplace surround materials. …
- WOOD. Wood is a less obvious choice for a fireplace surround than steel.. …
- CONCRETE. …
- STONE. …
- BRICK. …
- TILE.
What is code for fireplace surround?
The National Fire Code dictates that any combustible material (e.g., wood mantel or similar trim) must be at least six inches from the firebox opening. An additional inch of clearance is needed for every 1/8 inch the combustible material or trim protrudes.
Can you use MDF around a fireplace?
You can use paint-grade wood (such as MDF) or finish wood (cherry, maple, oak). The ends of that piece of moulding should be cut at 45-degree angles. Then, to complete the job, extend the moulding around the bottom of the mantel.
How much heat can drywall handle?
Sheetrock® Brand Gypsum Panels can withstand temperatures up to 125°F.
How long does it take to burn through drywall?
Using Fire-Rated Drywall The 5/8-inch, “fire-code” drywall (called Type X) increases a wall’s fire rating to a minimum of 1 hour, from the 30-minute rating for standard ½-inch drywall.
