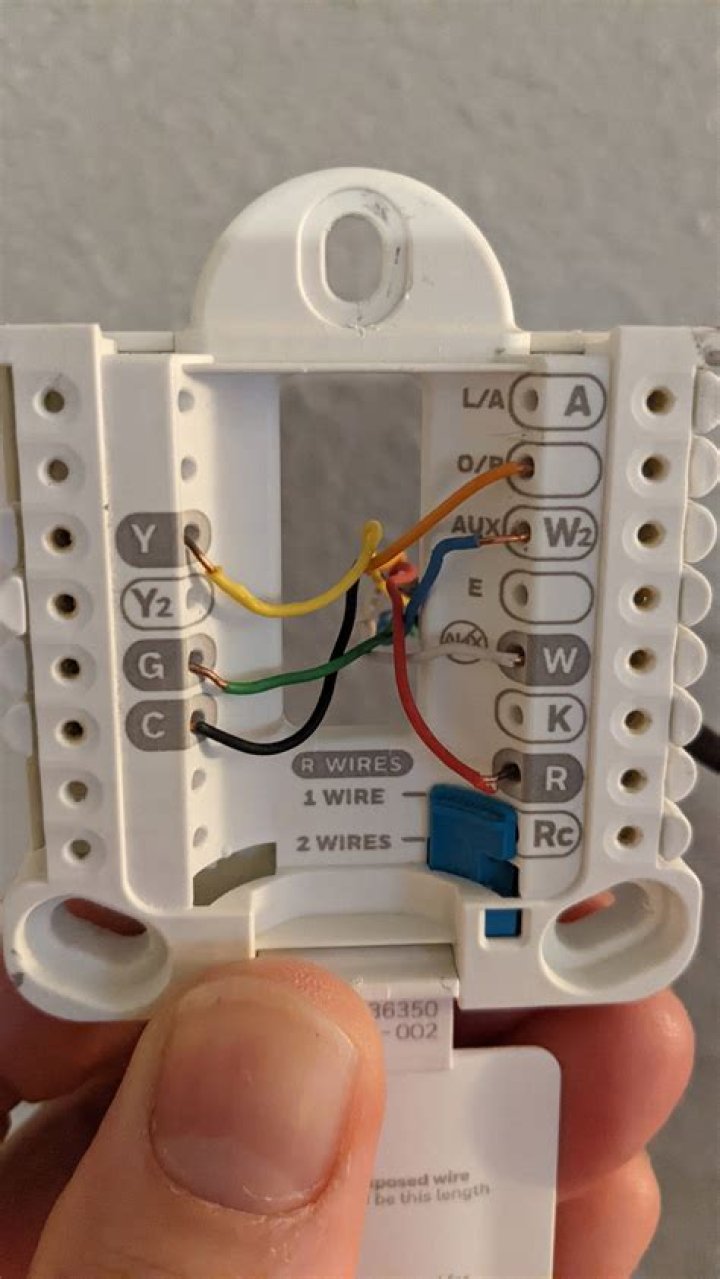

The white wire underneath your thermostat connects to your heating system. It terminates at your air handler or furnace. The white wire connects to terminal W in industry-standard thermostats.
What color wire goes where on a thermostat?
This is the most typical thermostat wiring style, and it applies to systems that regulate both heat and air conditioning. The wires are typically arranged as follows: red for 24-volt hot, white for heat, yellow for cooling, green for the fan, and blue for common (although the common wire may be a different color).
Is the white wire hot on a thermostat?
Here is the industry standard color code for thermostat wires used for most systems: The W wire is connected to your heating system. If your thermostat controls your heat, you will have a white wire. The Y wire is yellow and connects to your air conditioning compressor.
Where does the red and white wire go on a Honeywell thermostat?
The white wire is usually connected to the “W” terminal. The thermostat acts as a switch, like a light switch. The Red to white switch turns on the heat. Red to Green turns on the fan, Red to Yellow turns on the air conditioner.What wires go where on a thermostat?
In general, the thermostat wire colors match the first letter of terminal names such as Red Wires for R terminals (for Power), Yellow Wires for the Y terminal (for Cooling), White for the W terminal (for Heating), Green Wires for the G terminal (for the Fan).
What does the RH wire do on a thermostat?
The RH wire refers to “red heating” which means that this is the connection you need in order to power the heating system of your air conditioning unit. Yes, even your air conditioning unit has a heating system to keep the temperature in balance.
What color wire goes where on a Honeywell thermostat?
Meaning of Wiring Terminal Letters W (white) controls the auxiliary heating elements. Y (yellow) controls the compressor on the cooling system. G (green) controls the fan. C (blue or black) provides a return path to the transformer.
What color is the C wire?
Blue wires are also called “C” wires because they are the Common wire. C wires are necessary for any “smart” thermostat that needs to be connected to a power source 24/7, regardless of your heat pump type.What do the wires mean on a thermostat?
Rh stands for Red-Heat and Rc stands for Red-Cool. If you only have a single red wire the jumper between Rh and Rc are required for some heating and cooling hybrid systems depending on your thermostat. Yellow/Y is the AC compressor. White/W is the Heating element. Green/G runs the fan.
What happens if you wire a thermostat wrong?Potential consequences of improper installation could include: Electric shock. Blowing a circuit breaker. Damaging the thermostat unit, the electrical system or even the AC/furnace unit itself.
Article first time published onWhat is W1 wire on thermostat?
The W or W1 wire controls your heating system. In most systems, the Y or Y1 wire controls your cooling system. If you have a heat pump, your Y or Y1 wire controls your compressor. Your compressor is responsible for heating and cooling your home.
What is the O B wire?
O, B, O/B: These wires are responsible for switching the changeover valve in a heat pump system. The O wire reverses the valve from heating to cooling, and the B wire switches the valve from cooling to heating. Sometimes it might be a single O/B wire instead of two separate wires.
What color is W1 wire?
Thermostat TerminalWire ColorWhat is DoesY1YellowCooling Terminal – Condenser ControlY2Light Blue but Varies♣Cooling Second StageW1WhiteHeating ControlW2Brown or Black but Varies♣2nd Stage for Heat
What are the 5 thermostat wires?
- Red wire for power (24V).
- White wire for heating (connected to W or W1 terminal).
- Green wire for fans.
- Blue or yellow wire for cooling (connected to Y).
- Black wire for “C” or “Common” wire.
What color is b wire on thermostat?
MarkingWire Color CodeDescriptionY2YellowSecondary cool call relayGGreenFan relayOOrangeChange-over relay to cool relayBBlueChange-over relay to heat relay
Why is my White Rodgers thermostat not working?
Most White-Rodgers digital thermostats run on AA batteries, which can cause the unit to malfunction if they’re low or dead. Look for a low battery indicator on the screen if you have an electronic thermostat. … After replacing the batteries, turn the system back on and see if that fixes the issue.
Is Rh wire same as R?
Understanding what RC stands for means, you can probably take an educated guess as to the meaning of RH. The “R” still indicates it’s a hot wire and terminal connection, and the “H” simply means heating. The RH wire connects to the RH terminal and controls the heating part of the thermostat.
Does R go to RC or RH?
Here are some general guidelines: An R wire can go into a Nest Learning Thermostat’s Rc or Rh connector. The Nest Thermostat E only has an R connector, which is typically where an R wire would go. … These are not jumper wires, and you can insert the Rc wire into the Rc connector and the Rh wire into the Rh connector.
Why RH wire has no power?
To fix an E74 error or no power to the Rh wire error on your Nest thermostat, check for loose connections and fix them. If that does not work, clean out the drain pipes and check if the condensate pump associated with your HVAC is clogged.
Where is the C wire on a thermostat?
Simply remove your current thermostat face from its baseplate and look for the terminal labeled with the letter “c.” If this terminal has a wire attached to it, you have an active “c-wire.” If you don’t see a wire connected to your “c” terminal, you have a few options.
Should my thermostat be on E or F?
The thermostat fan operation switch, labeled FUEL SWITCH in the diagram below, is factory-set in the “F” position. This is the correct setting for most systems. … The “E” setting will allow the fan to turn on immediately with the heating or cooling in a system where the G terminal is connected.
Can a thermostat wire cause a fire?
More than 135,000 thermostats are being recalled because contact between the thermostat wires and household line voltage may cause a fire.
What is the difference between W1 and W2 thermostat?
In a conventional system, W/W1 controls your heating system and, where applicable, W2 controls your heating system’s second stage, which helps warm the home faster. … In conventional cooling systems, Y/Y1 controls the first stage of cooling and Y2 controls the second stage, which helps cool down the home faster.
What is the OB switch on thermostat?
What is the O/B terminal for? The O/B terminal is for heat pump systems and is used for the reversing valve. When the “O” option/position is selected the reversing valve defaults to the heating mode. If the “B” option/position is selected the reversing valve defaults to the cooling mode.
What does RC and RH mean on a thermostat?
RC: The RC terminal is the 24-volt cooling power supply. RH: The RH terminal is the 24-volt heating power supply. (Note: The RC and RH terminals are jumpered together in a four-wire heat/cool system and a single-stage heat pump system, but not in a five-wire heating/cooling system.)
What is the Y2 wire on a thermostat?
Y2 is the thermostat wire for second stage of cooling. Y wire is for the first compressor (air conditioner units) and Y2 wire is for the second compressors (air conditioner unit). Y2 wires apply only if you have two air conditioner compressor units running from one AC thermostat.
